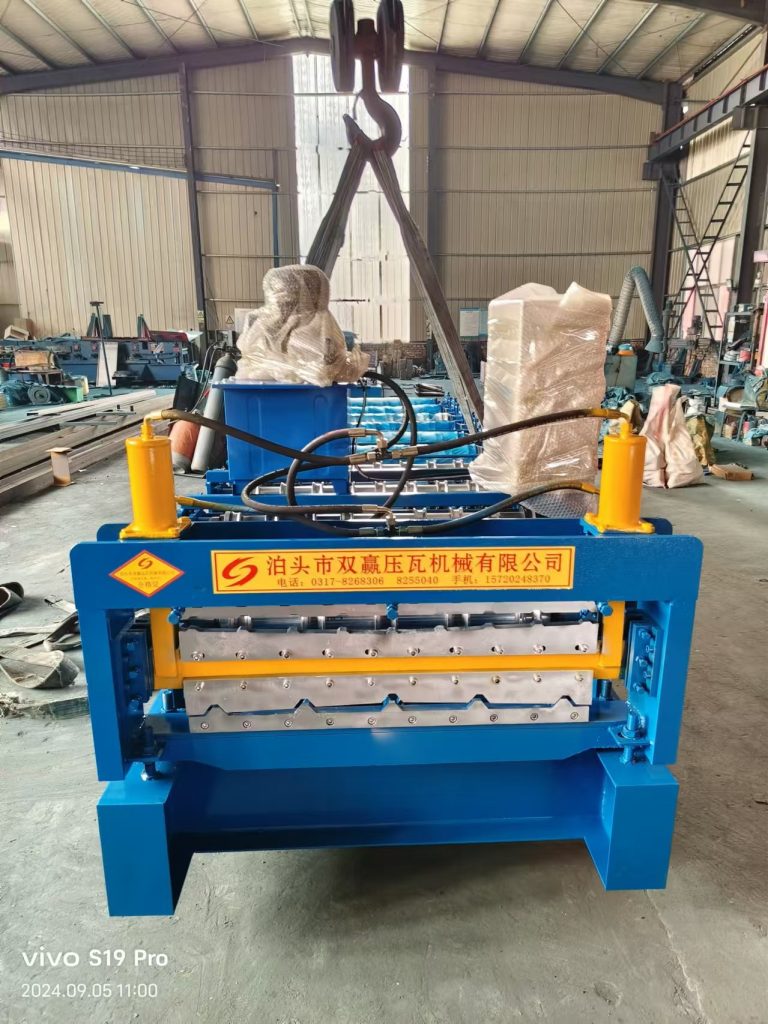

Two-layer color steel tile press machine
Here is a detailed introduction to the working principle of the color steel tile press machine. The working principle of the color steel tile press machine is mainly to process metal sheets through mechanical movement to form them into color steel tiles of specific shapes. The following is a detailed introduction for you:
- Power drive: Generally, power is provided by a motor. After the motor runs, power is transmitted to the working parts of the tile press machine through transmission devices such as belt transmission, chain transmission or gear transmission.
- Roll forming:
- Cooperation of upper and lower rollers: The tile press machine has upper and lower opposite rollers. When the metal sheet (such as color steel plate) enters between the upper and lower rollers, the rollers start to rotate. During the rotation process, due to the fixed distance between the upper and lower rollers and the specific shape on the surface of the rollers (such as corrugated, trapezoidal, etc.), the sheet will gradually be bent and pressed under the extrusion of the rollers to form a shape that matches the shape of the roller surface.
- Adjusting forming parameters: By adjusting parameters such as the distance between upper and lower rollers, rotational speed, and pressure applied to the sheet, color steel tile products of different thicknesses and different shapes (such as corrugated plates with different wave heights and pitches) can be produced. For example, reducing the distance between the rollers can make the sheet subject to greater pressure, thereby making the formed color steel tile more compact and sturdy; changing the rotational speed of the rollers can affect production efficiency and the forming quality of the sheet.
- Fixed-length cutting (some models are equipped): Some color steel tile press machines are also equipped with cutting devices. When the sheet passes through roll forming and reaches the required length, the cutting device will act and cut the continuous sheet into color steel tile sections of a certain length to meet the actual usage needs. The cutting device is usually driven by a hydraulic cylinder or pneumatic cylinder to move the cutting tool up and down or laterally to achieve the cutting action.
- Control system: Modern color steel tile press machines are usually equipped with an automated control system, which can achieve precise control of the entire production process. For example, setting the rotational speed of the motor, controlling the feeding speed of the sheet, coordinating the time sequence of roll forming and cutting actions, etc. Operators can input relevant parameters and instructions through the control panel, and the control system will automatically adjust the working state of the tile press machine according to these instructions to ensure that the produced color steel tiles meet quality requirements.
